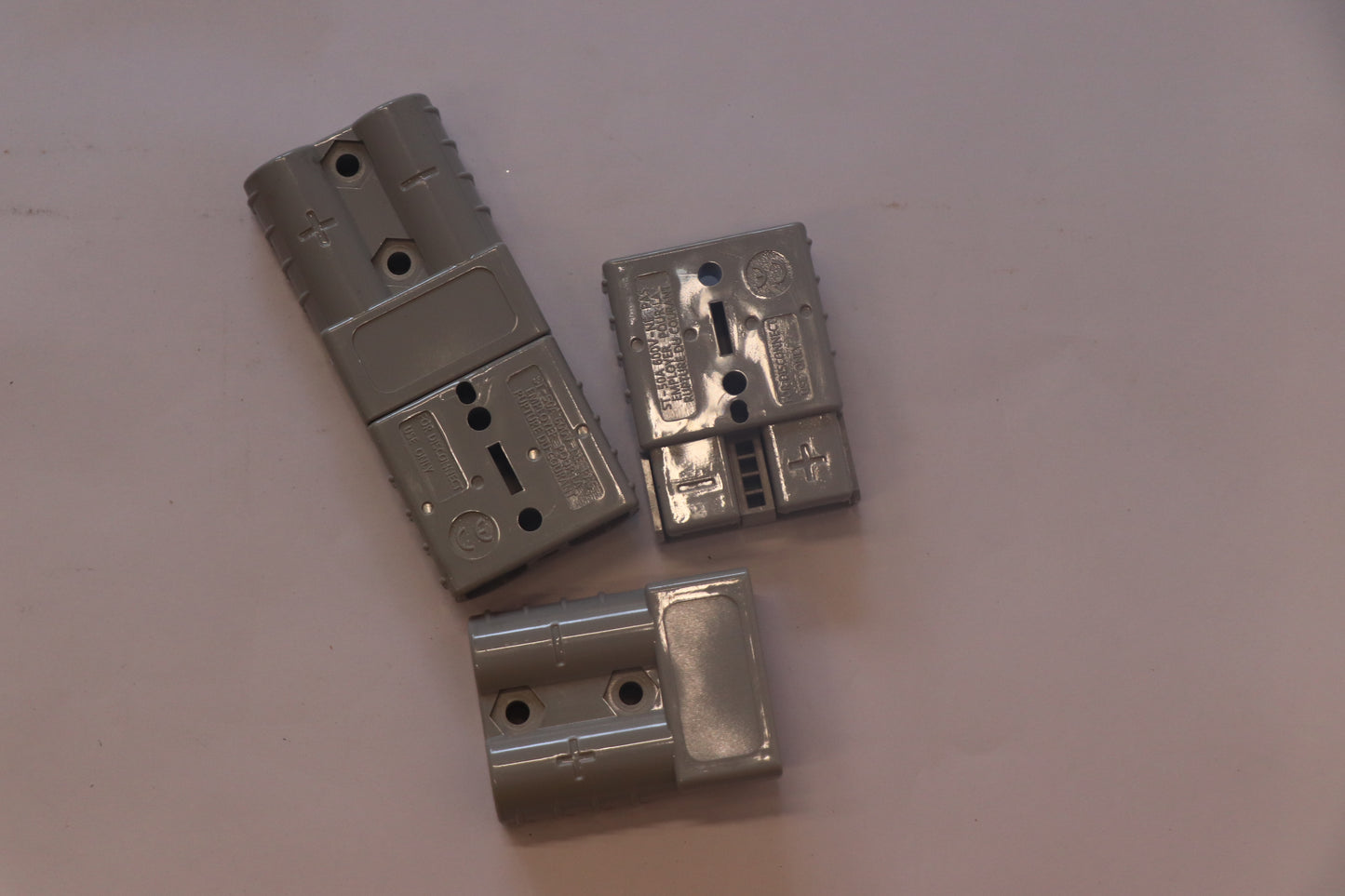

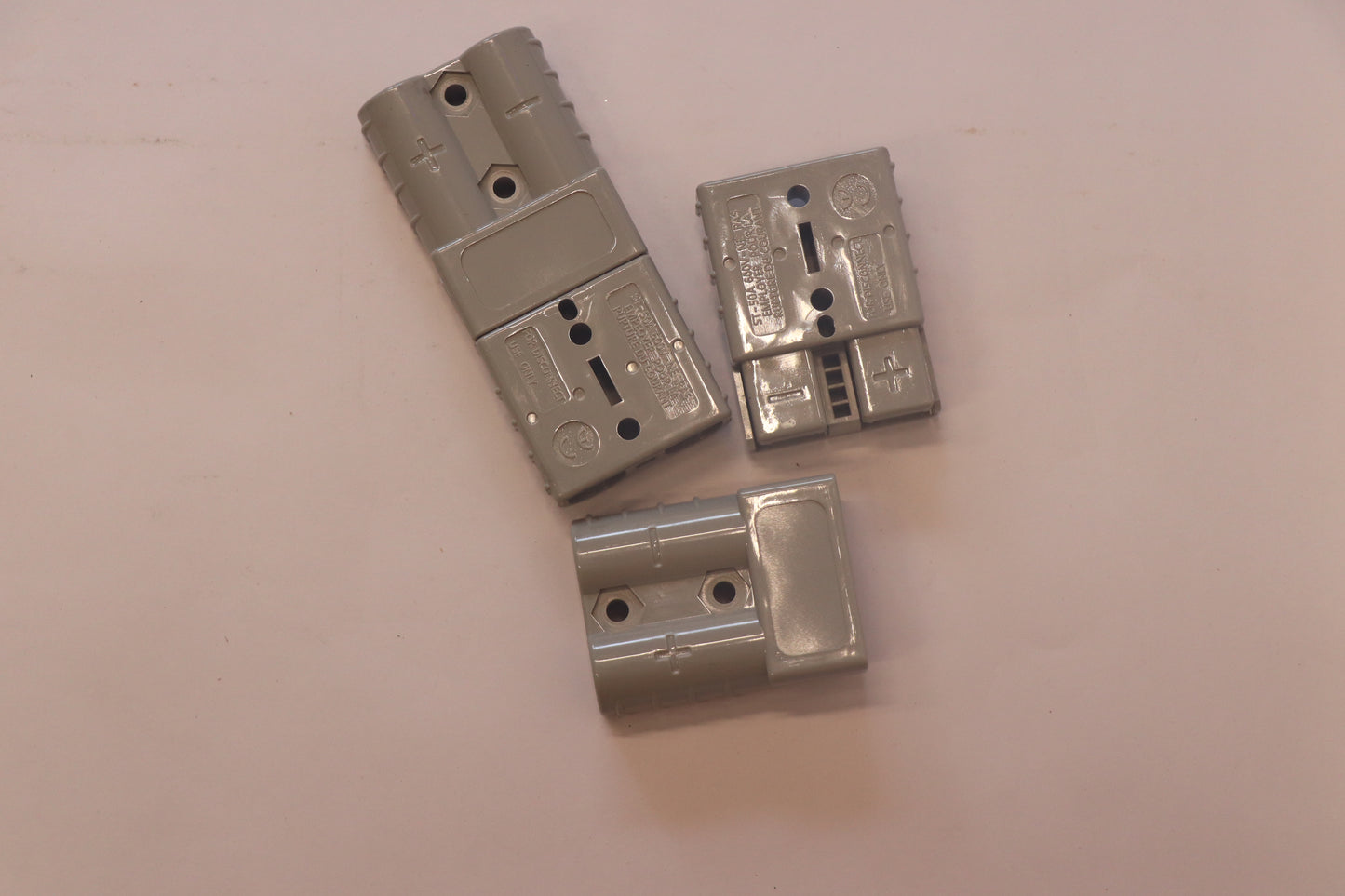

SB50 Anderson Connector with Pin

1. General Specifications:

• Brand: Anderson Power Products
• Model: SB50
• Connector Type: High-current DC Power Connector
• Pin Type: Silver or Copper-plated contacts
• Number of Poles: 2 (Positive & Negative)
• Voltage Rating: 600V Max
• Current Rating: 50A (Continuous)
• Wire Size Compatibility: 6 AWG to 12 AWG

2. Material & Durability:

• Housing Material: Polycarbonate (PC) – High Impact Resistance
• Contact Material: Copper Alloy with Silver / Tin Plating for Low Resistance
• Temperature Rating: -20°C to +105°C
• Flammability Rating: UL94 V-0 (Flame Retardant)

3. Features:

✅ Genderless Design: Allows easy connection and stacking
✅ Durable Construction: Supports high-current applications
✅ Quick Connect & Disconnect: Ideal for battery packs, EVs, and solar applications
✅ Low Resistance: Provides efficient power transfer
✅ Color-Coded Housings (Optional): Different colors available for voltage differentiation

4. Applications:

• Lithium & Lead-Acid Battery Packs
• Electric Vehicles (EVs, E-Bikes, Golf Carts, Forklifts, etc.)
• Solar Power Systems
• UPS & Inverter Connections
• Industrial & Commercial DC Power Distribution
