INSULATION AND KAPTON TAPE - LITHOGREEN

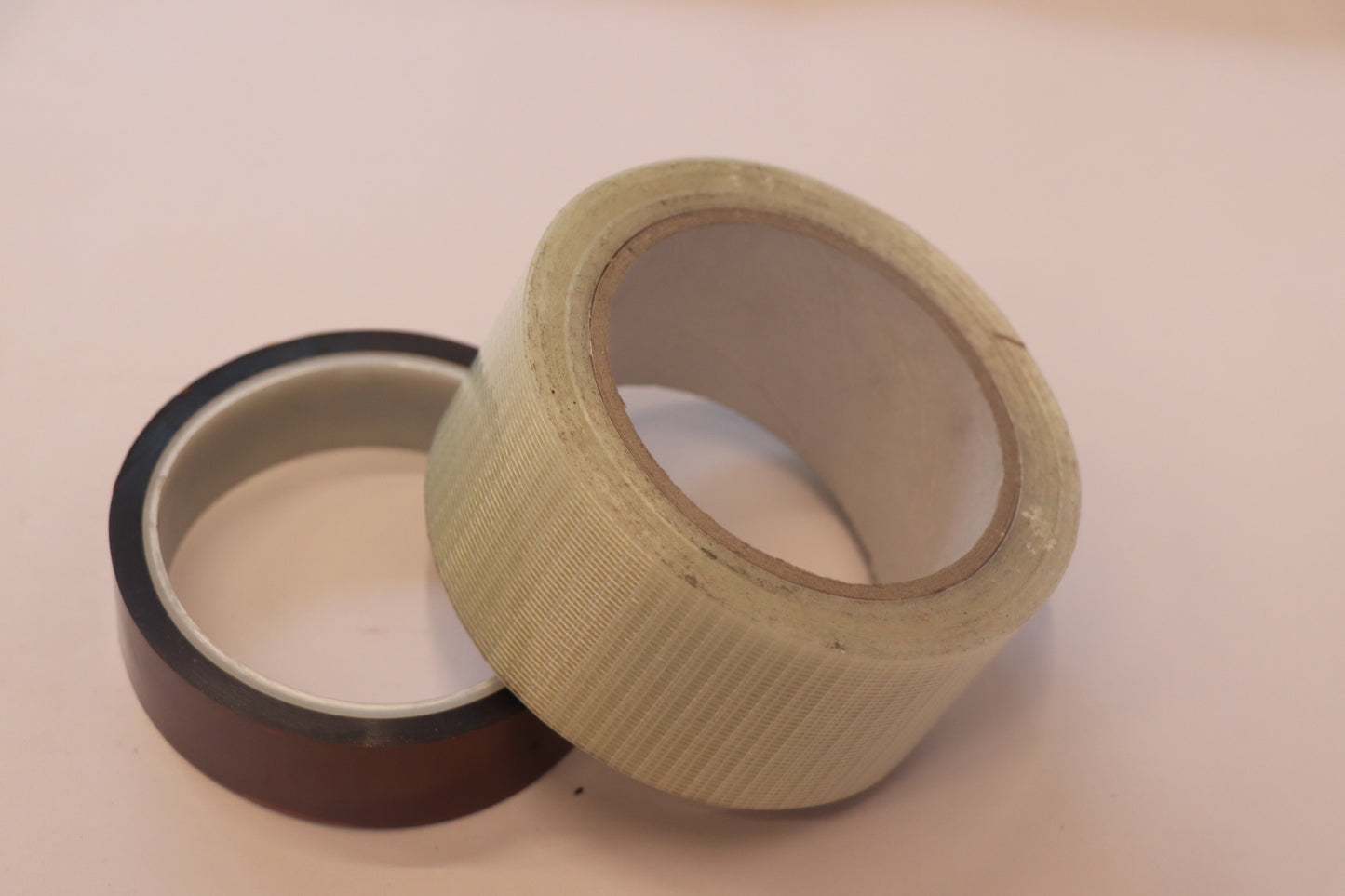

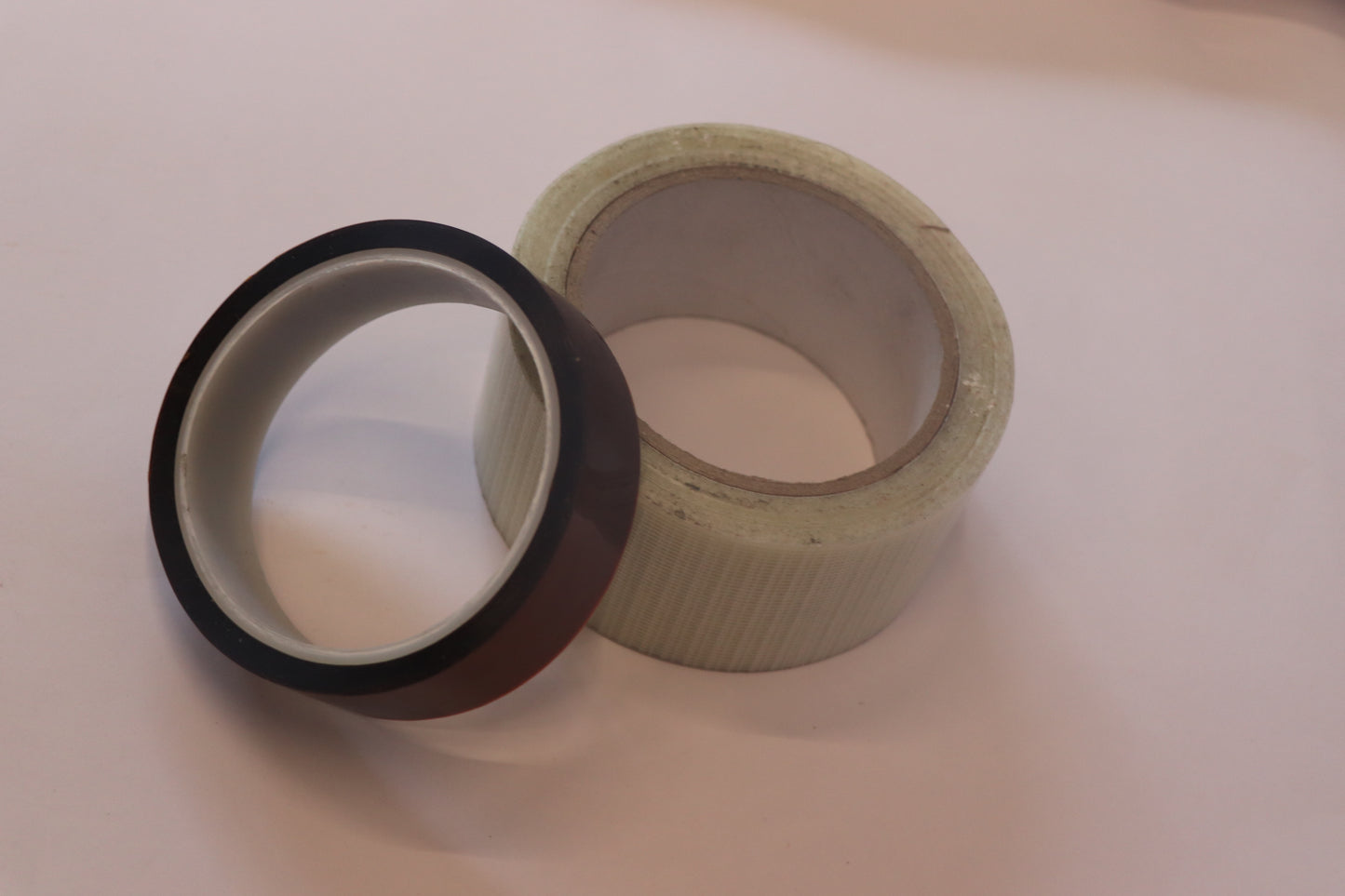

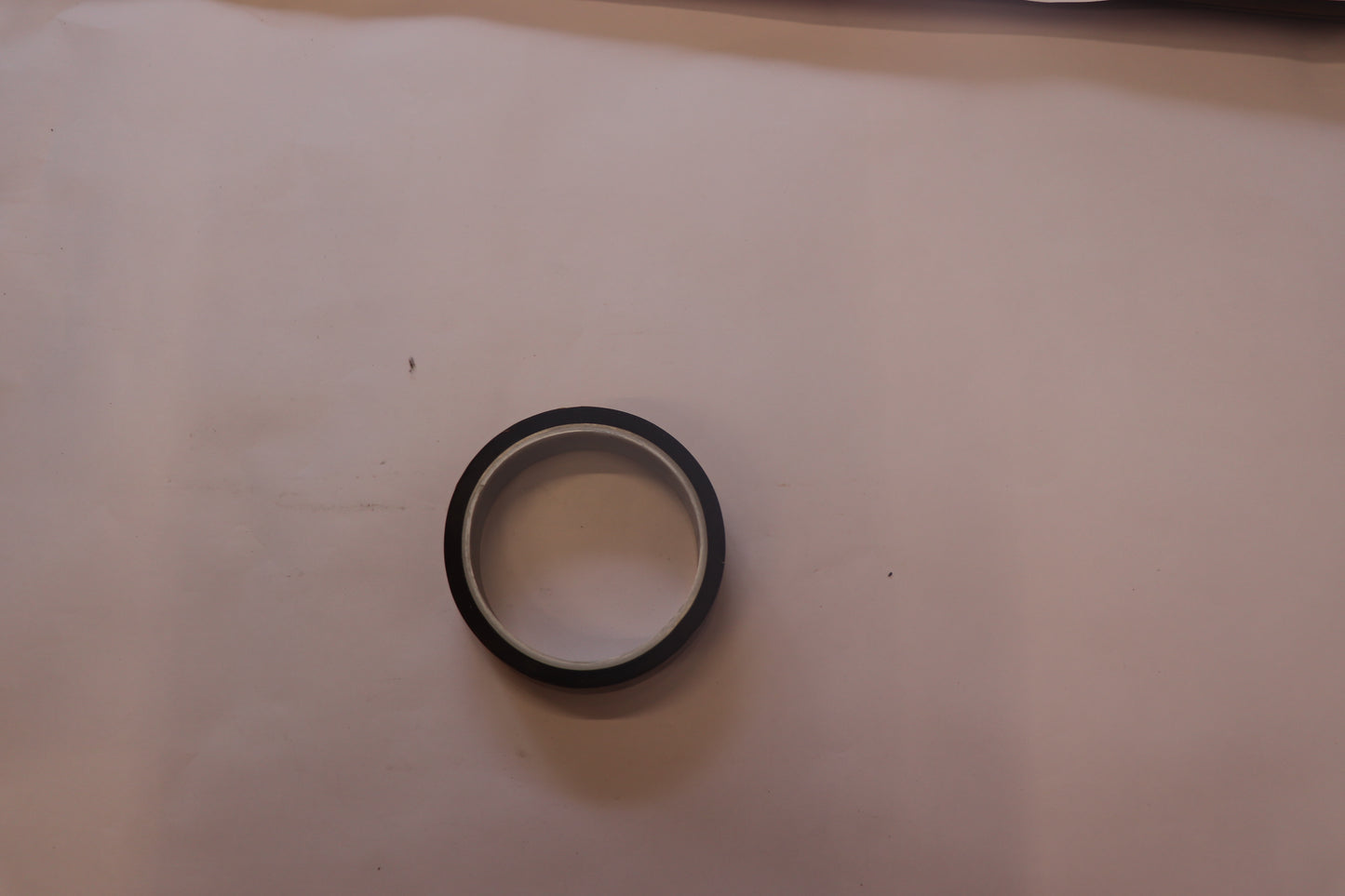

1. Kapton Tape (Polyimide Tape)

✅ Material: Polyimide film with high-temperature silicone adhesive
✅ Temperature Resistance: -269°C to +260°C
✅ Thickness: 0.05mm - 0.1mm (Varies by model)
✅ Dielectric Strength: 5kV - 7kV
✅ Adhesion: Strong, leaves no residue
✅ Flammability Rating: UL94 V-0 (Flame Retardant)
✅ Uses:

• Insulating lithium-ion & LFP battery cells
• Protecting PCB circuits & electronic components
• Wrapping busbars & high-voltage connections
• Preventing short circuits in battery packs

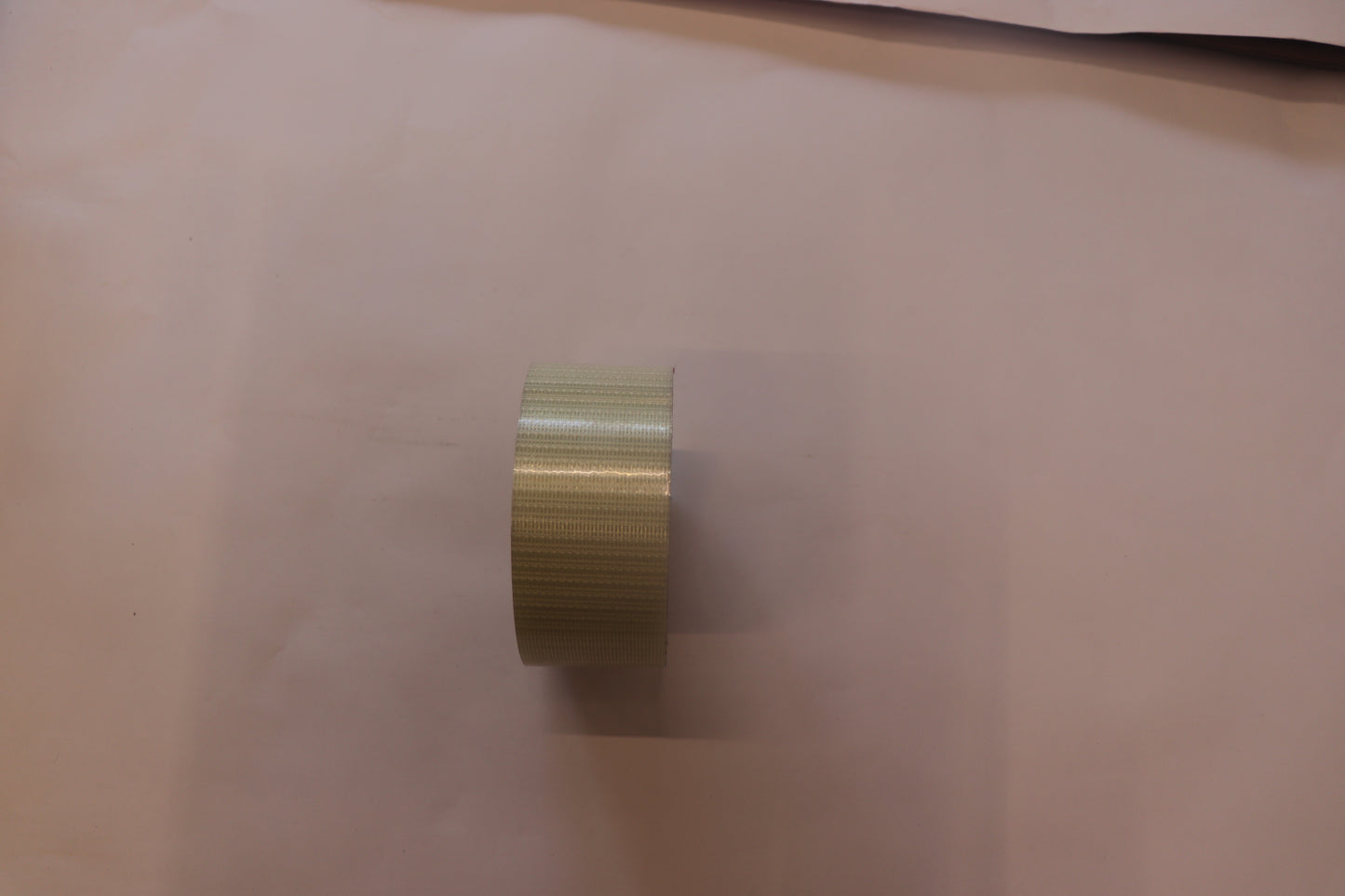

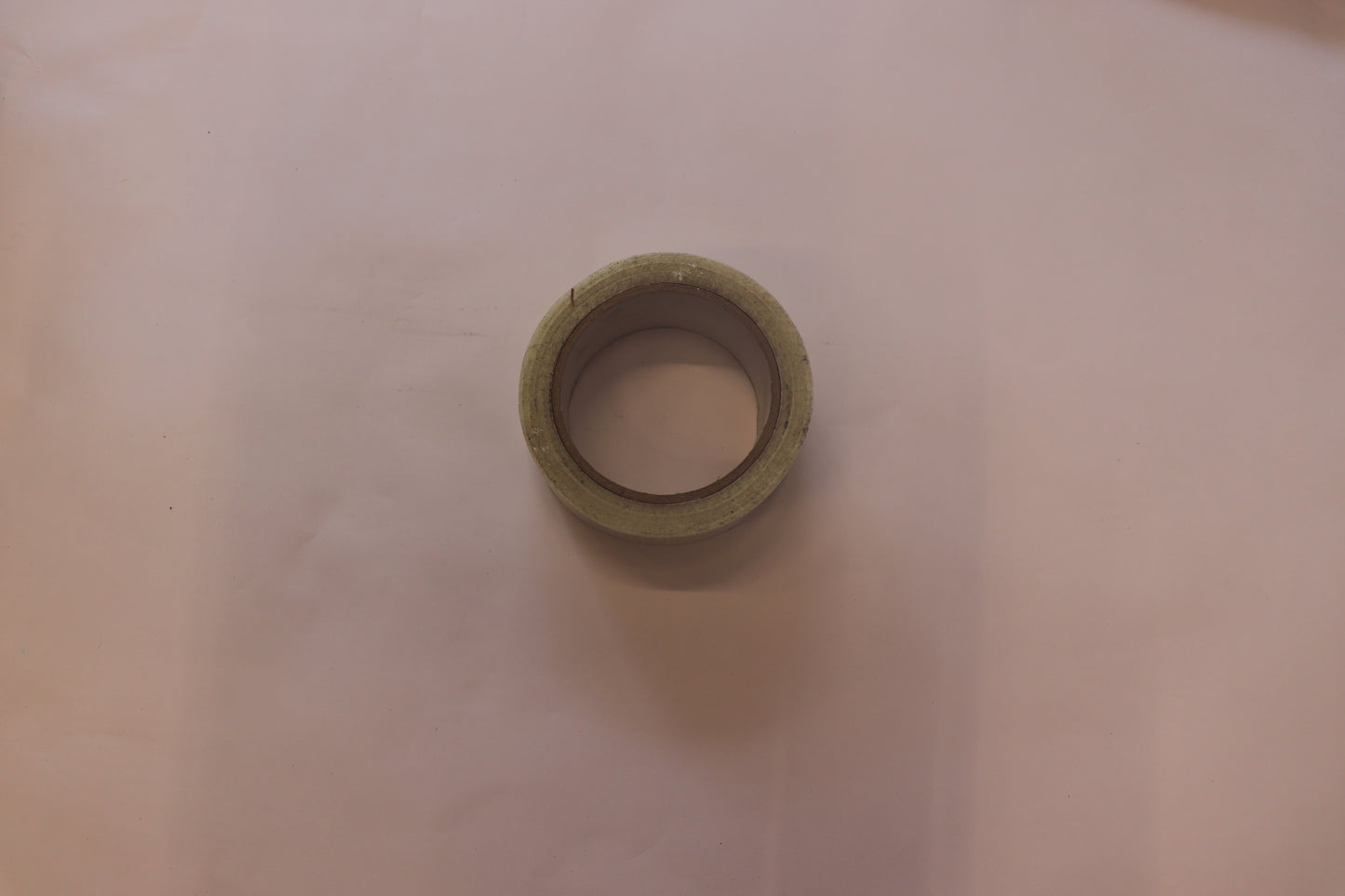

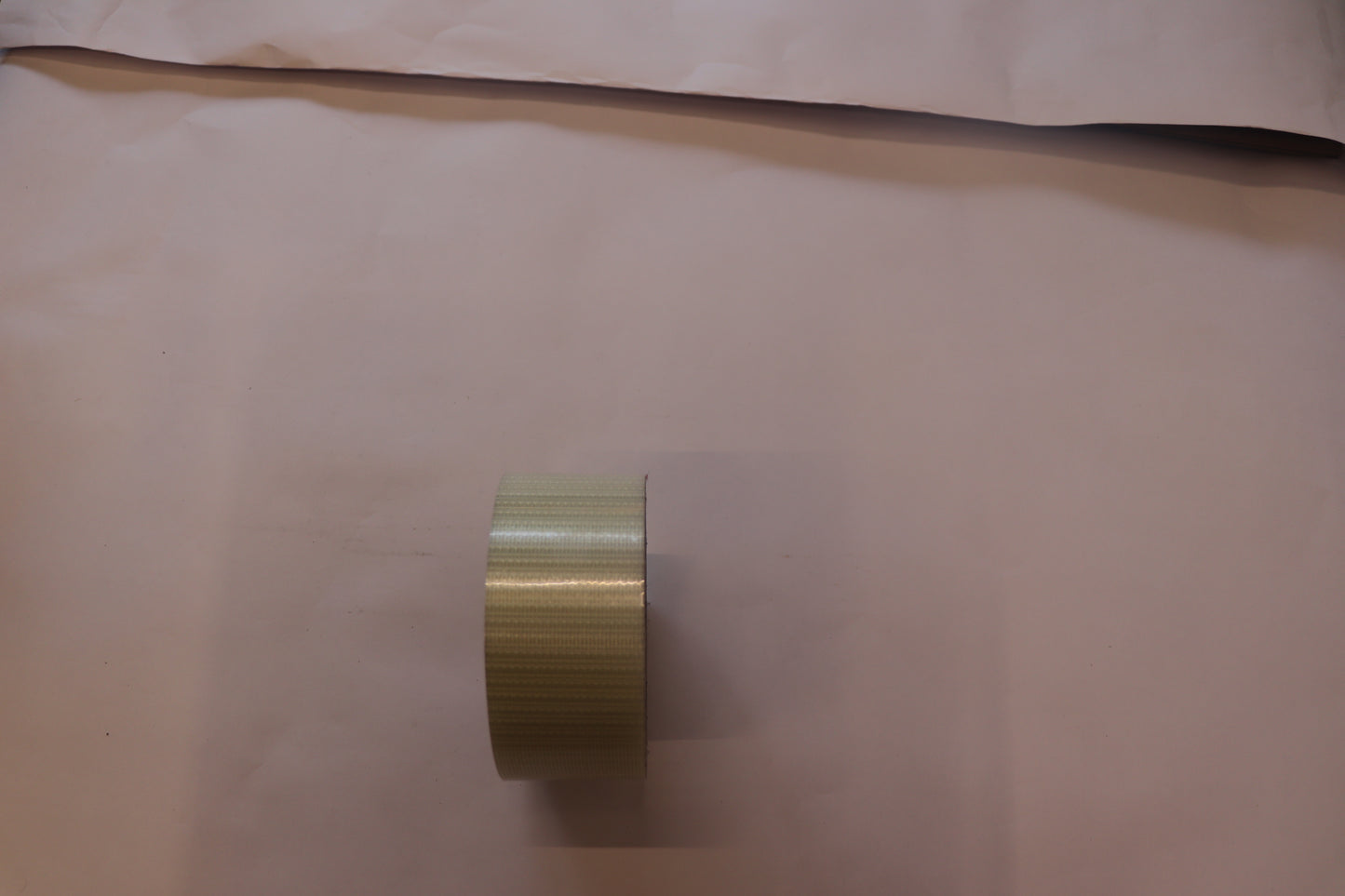

2. Insulation Tape for Lithium Batteries

✅ Material: PVC, PET, or fiberglass-reinforced tape
✅ Temperature Resistance: -40°C to +125°C
✅ Adhesive Strength: High-performance insulation adhesive
✅ Thickness: 0.1mm - 0.2mm
✅ Uses:

• Insulating battery pack connections
• Securing nickel strips & terminals
• Electrical insulation for EV batteries, power tools, and solar batteries
