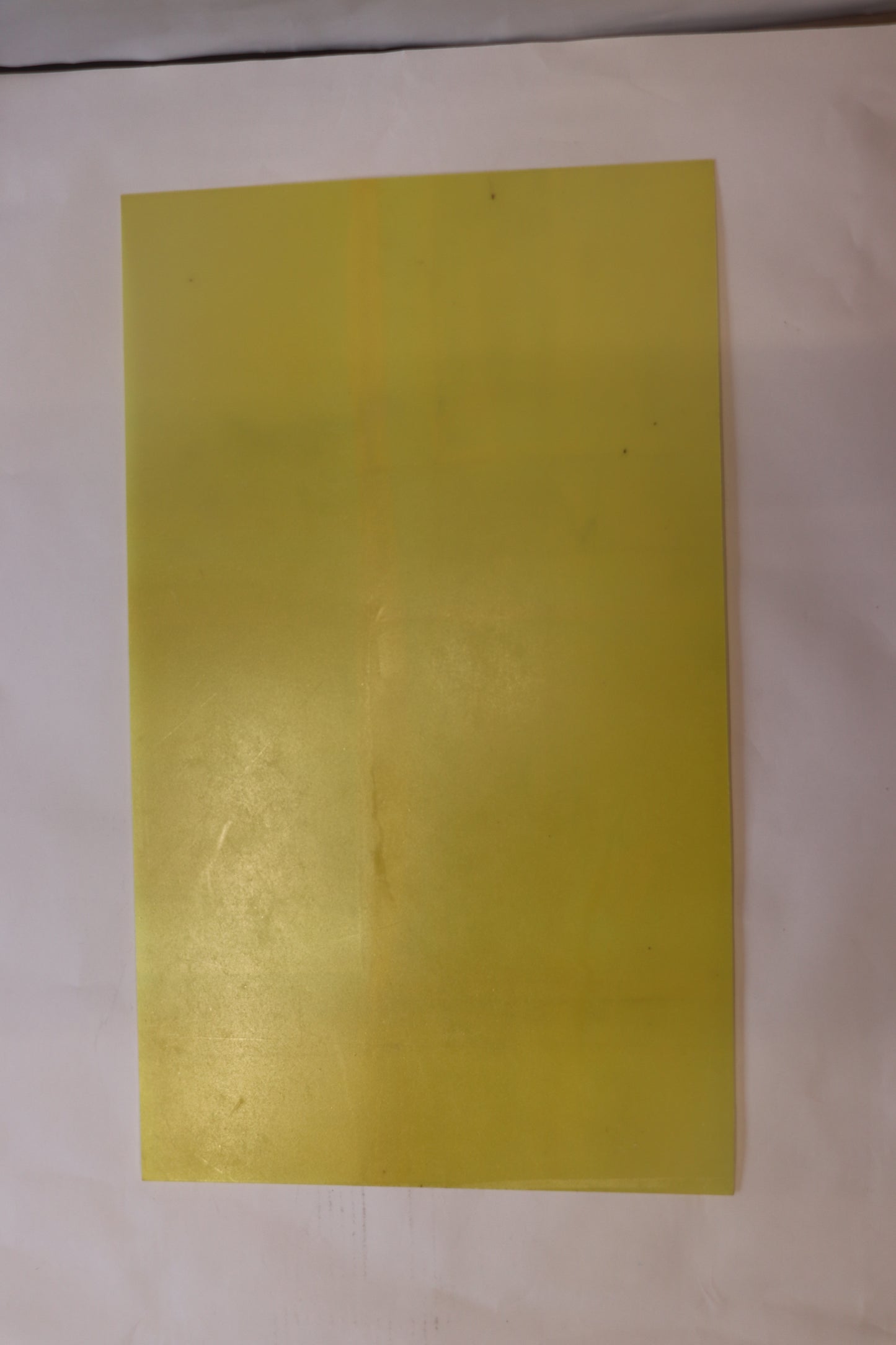

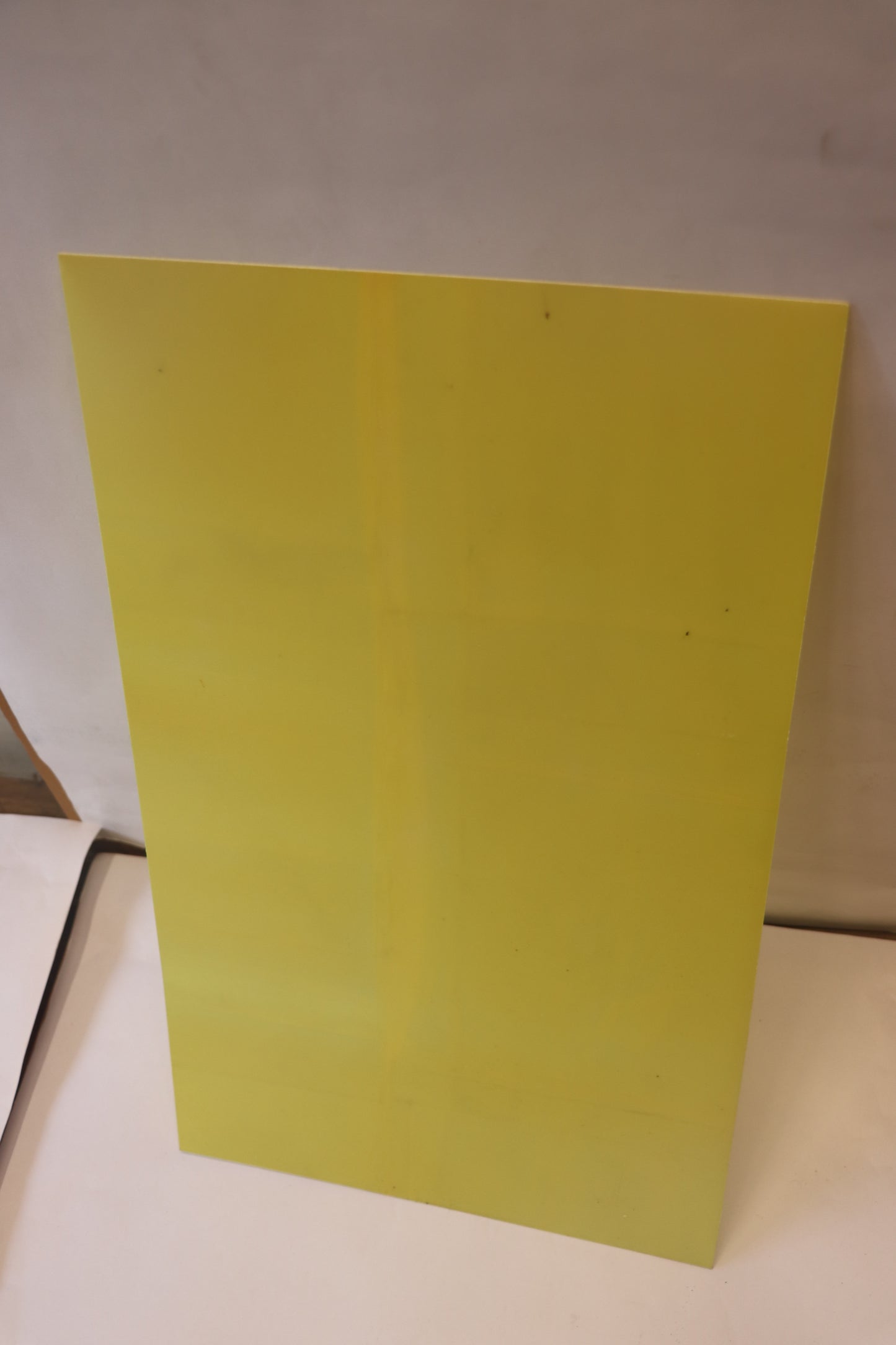

Epoxy Sheet – High-Strength Electrical Insulation Sheet

1. General Specifications:

✅ Material: Fiberglass Reinforced Epoxy Resin (FR4 / G10 / G11)
✅ Thickness: 12mm
✅ Sheet Size: 100mm × 100mm to 1200mm × 2400mm (Varies by requirement)
✅ Density: 1.8 – 2.0 g/cm³
✅ Color Options:  Yellow,
✅ Dielectric Strength: 12kV/mm - 20kV/mm
✅ Temperature Resistance: -40°C to +180°C (Short-term up to 200°C)
✅ Flammability Rating: UL94 V-0 (Fire Retardant)

2. Features & Benefits:

✔️ High Electrical Insulation: Prevents short circuits & high-voltage leakage
✔️ Strong Mechanical Properties: High tensile & compressive strength
✔️ Heat & Chemical Resistant: Suitable for extreme environments
✔️ Moisture & Corrosion Resistant: Ideal for long-term applications
✔️ Machinable & Customizable: Can be cut, drilled, or CNC machined for specific applications

3. Applications:

🔹 Lithium-ion & LFP Battery Pack Insulation
🔹 PCB Boards & Electrical Panel Insulation
🔹 EV Battery Enclosures & Bus Bar Insulation
🔹 High-Voltage Transformer & Motor Components
🔹 Industrial & Aerospace Applications
